Description
- Indicates-the-dimensions-and-shape-of-image,-where-“Ø-=”-stands-for-diameter-and-“x=”-indicates-the-nominal-image-height-and-width-(Tech-Info-for-related-drawing).
- Object-field-of-view-(mm-x-mm).-For-the-fields-with-the-indication-“Ø-=”,-the-image-of-a-circular-object-of-such-diameter-is-fully-inscribed-into-the-sensor.
- Working-distance:-distance-between-the-front-end-of-the-mechanics-and-the-object.-Set-this-distance-within-±3%-of-the-nominal-value-for-maximum-resolution-and-minimum-distortion.
- Working-f-number-(wf/N):-the-real-f-number-of-a-lens-in-operating-conditions.
- Maximum-angle-between-chief-rays-and-optical-axis-on-the-object-side.-Typical-(average-production)-values-and-maximum-(guaranteed)-values-are-listed.
- Percent-deviation-of-the-real-image-compared-to-an-ideal,-undistorted-image.-Typical-(average-production)-values-and-maximum-(guaranteed)-values-are-listed.
- At-the-limits-of-the-depth-of-field,-the-image-can-still-be-used-for-measurements.-For-a-very-sharp-image,-however,-only-half-of-the-depth-of-field-should-be-considered.-Pixel-size-used-for-calculation-is-3.45-μm.
- Object-side,-calculated-with-the-Rayleigh-criterion-with-λ=-520-nm
- Indicates-the-availability-of-an-integrated-camera-phase-adjustment-feature.

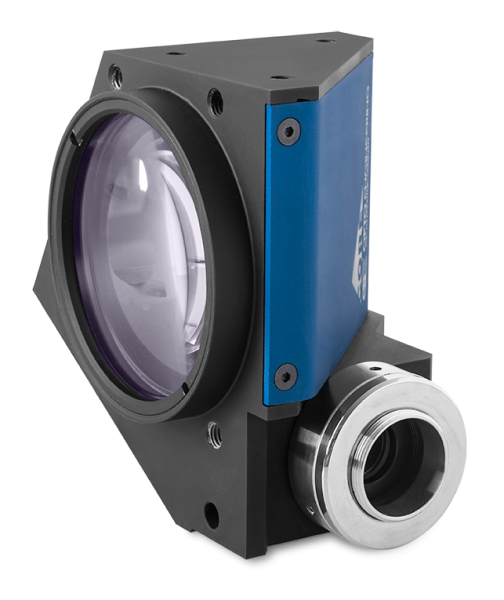

- Due-to-the-special-shape-of-TCCR120xx-it-might-be-necessary-to-check-the-mechanical-compatibility-with-your-camera
