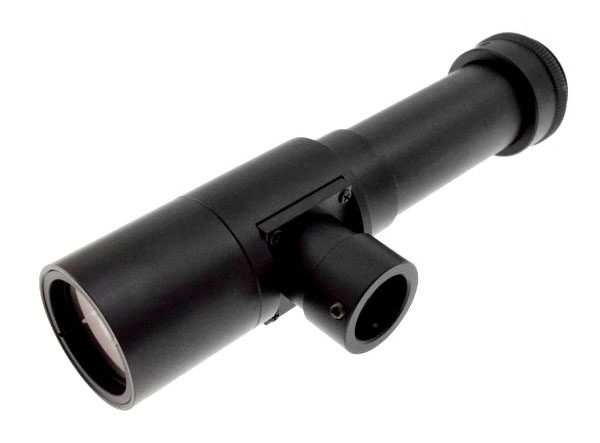

RT-MP-2F-65

RT-MP-2F-65

Specification Value
Magnification 2.000 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2.5″ 2.85 x 2.14 (mm x mm)
1/1.8″ 3.57 x 2.67 (mm x mm)
2/3″ 4.25 x 3.55 (mm x mm)
1″ 7.10 x 3.76 (mm x mm)
1.1″ 7.08 x 5.19 (mm x mm)
Working distance 65.0 (mm)
Working f/N 10
Distortion < 0.96 (%)
Depth of field 0.10 (mm)
Resolution 3.4 (μm)
Mount C
Phase adjustment Yes
Length 127.0 (mm)
Front diameter 29.0 (mm)
Mass 130 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Resolution

3.4 (μm)
Color
Accessory developer

Opto
Distortion

< 0.96 (%)
Front diameter

29.0 (mm)
Length

127.0 (mm)
Image circle diameter

16.0 (mm)
1 1

7.08 x 5.19 (mm x mm)
Mass

130 (g)
Phase adjustment

Yes
Depth of field

0.10 (mm)
Working f/N

10
Working distance

65.0 (mm)
Zoom ratio

2.000 (x)
Operation power source
Optmag

2.000 (x)
Sensor size
