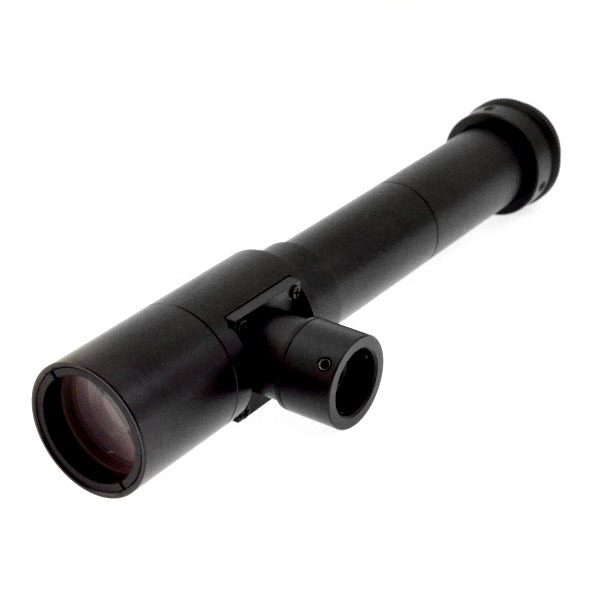

RT-MP-1.5F-65

Specification Value
Magnification 1.500 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2.5″ 3.80 x 2.85 (mm x mm)
1/1.8″ 4.75 x 3.55 (mm x mm)
2/3″ 5.67 x 4.73 (mm x mm)
1″ 9.46 x 5.01 (mm x mm)
1.1″ 9.44 x 6.91 (mm x mm)
Working distance 65.0 (mm)
Working f/N 7.5
Distortion < 0.57 (%)
Depth of field 0.10 (mm)
Resolution 3.4 (μm)
Mount C
Phase adjustment Yes
Length 114.6 (mm)
Front diameter 29.0 (mm)
Mass 130 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Resolution

3.4 (μm)
Color
Accessory developer

Opto
Distortion

< 0.57 (%)
Front diameter

29.0 (mm)
Length

114.6 (mm)
Image circle diameter

16.0 (mm)
1 1

9.44 x 6.91 (mm x mm)
Mass

130 (g)
Phase adjustment

Yes
Depth of field

0.10 (mm)
Working f/N

7.5
Working distance

65.0 (mm)
Zoom ratio

1.500 (x)
Operation power source
Optmag

1.500 (x)
Sensor size
