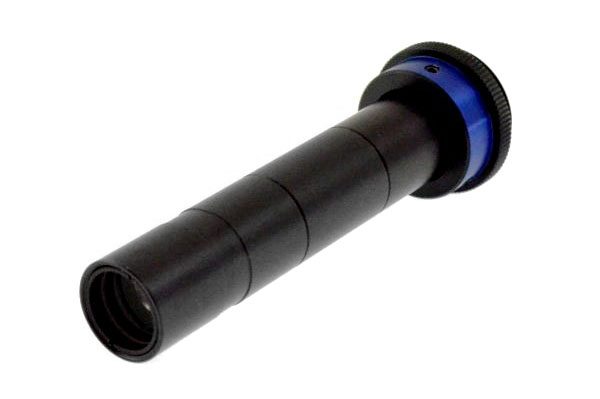

RT-HR-4M-110

RT-HR-4M-110

Specification Value
Magnification 4.000 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 1.20 x 0.90 (mm x mm)
1/2.5″ 1.43 x 1.07 (mm x mm)
1/2″ 1.60 x 1.20 (mm x mm)
1/1.8″ 1.78 x 1.33 (mm x mm)
2/3″ 2.13 x 1.77 (mm x mm)
Working distance 110.0 (mm)
Working f/N 39.2
Distortion < 1.03 (%)
Depth of field 0.20 (mm)
Resolution 6.6 (μm)
Mount C
Phase adjustment Yes
Length 92.5 (mm)
Front diameter 18.0 (mm)
Mass 60 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

92.5 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 1.03 (%)
Front diameter

18.0 (mm)
Image circle diameter

11.0 (mm)
Resolution

6.6 (μm)
Mass

60 (g)
Phase adjustment

Yes
Depth of field

0.20 (mm)
Working f/N

39.2
Working distance

110.0 (mm)
Zoom ratio

4.000 (x)
Optmag

4.000 (x)
Sensor size
