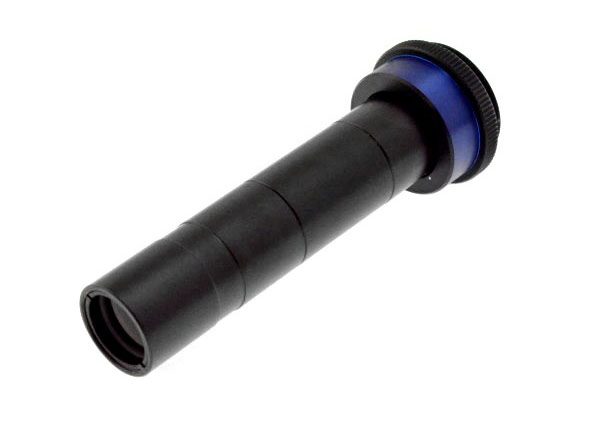

RT-HR-2M-110

RT-HR-2M-110

Specification Value
Magnification 2.000 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 2.40 x 1.80 (mm x mm)
1/2.5″ 2.85 x 2.14 (mm x mm)
1/2″ 3.20 x 2.40 (mm x mm)
1/1.8″ 3.57 x 2.67 (mm x mm)
2/3″ 4.25 x 3.55 (mm x mm)
Working distance 110.0 (mm)
Working f/N 23.8
Distortion < 1.52 (%)
Depth of field 0.40 (mm)
Resolution 8.0 (μm)
Mount C
Phase adjustment Yes
Length 85.3 (mm)
Front diameter 18.0 (mm)
Mass 55 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

85.3 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 1.52 (%)
Front diameter

18.0 (mm)
Image circle diameter

11.0 (mm)
Resolution

8.0 (μm)
Mass

55 (g)
Phase adjustment

Yes
Depth of field

0.40 (mm)
Working f/N

23.8
Working distance

110.0 (mm)
Zoom ratio

2.000 (x)
Optmag

2.000 (x)
Sensor size
