R5050MG-12M-WGG02E

Resolution	2368 x 1792
Max. Frame rate	45 fps
Shutter Mode	Global
Mono/Color	Mono
Lens Mount	M12
Trigger Mode	Software trigger/External trigger/Free run modes, etc.
Software	EasyID
Certifications	CE?UKCA?KC
Function	lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5?Industrial2of5?/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416?
Focal Length	12mm
Light Source Type	White
Focus Control	auto focus
Working Distance	80mm-1500mm
Field of View (FOV)	130mm x 97 mm@WD200mm
Max. Read Speed	90 codes/s
Max. Operating Speed	3m/s
Min. Resolution	1D code 0.04 mm/ 2D code 0.06 mm

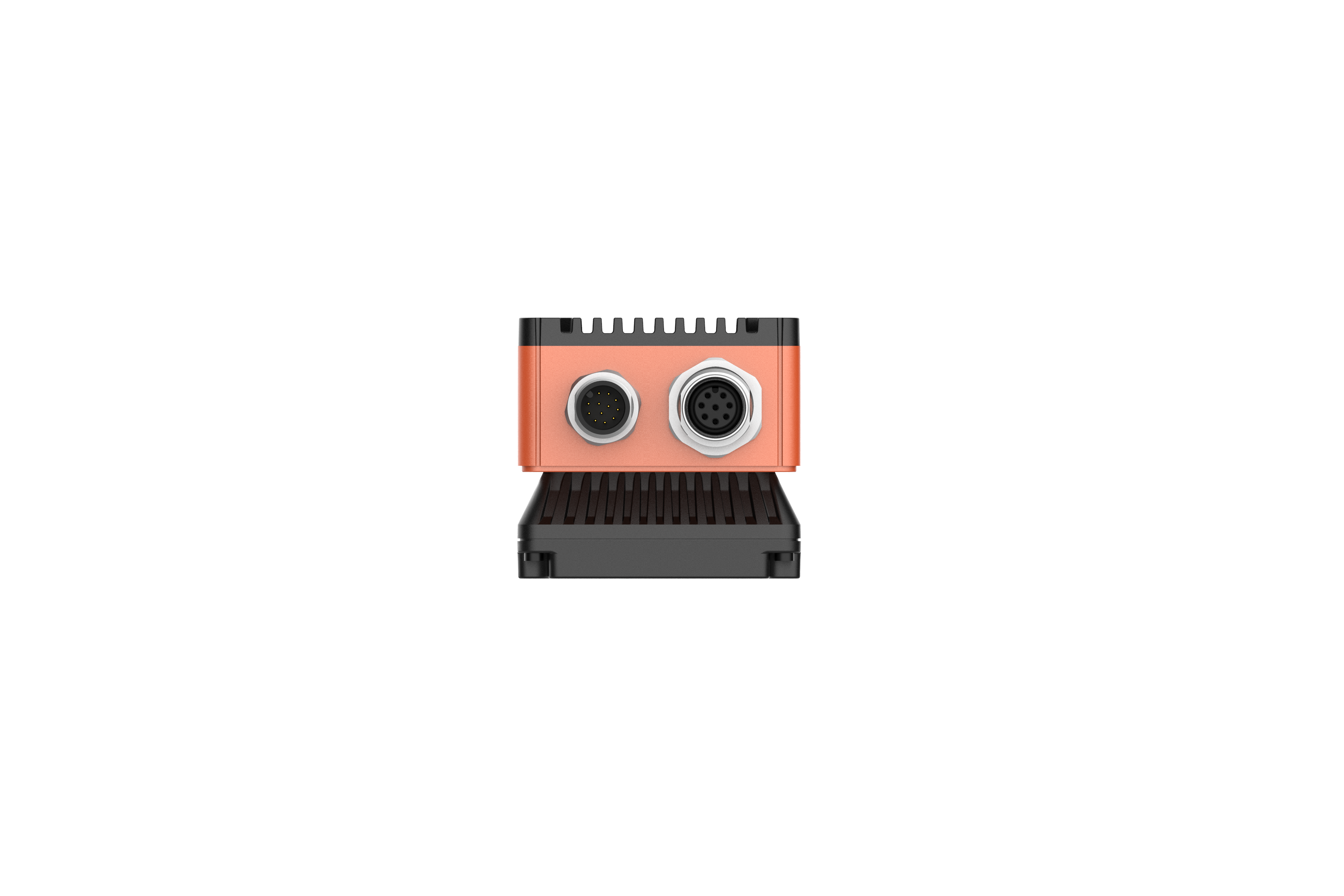

Connector	2 Industrial connectors support GigE and GPIO
Network Port	GigE
GPIO Interface	RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Communication Mode	RS232, Ethernet
Communication protocol	SDK?TCP Client?TCP Server?FTP?RS232?Profinet?Modbus?EtherNet/IP?MC(SLMP)?FINS/UDP?FINS/TCP

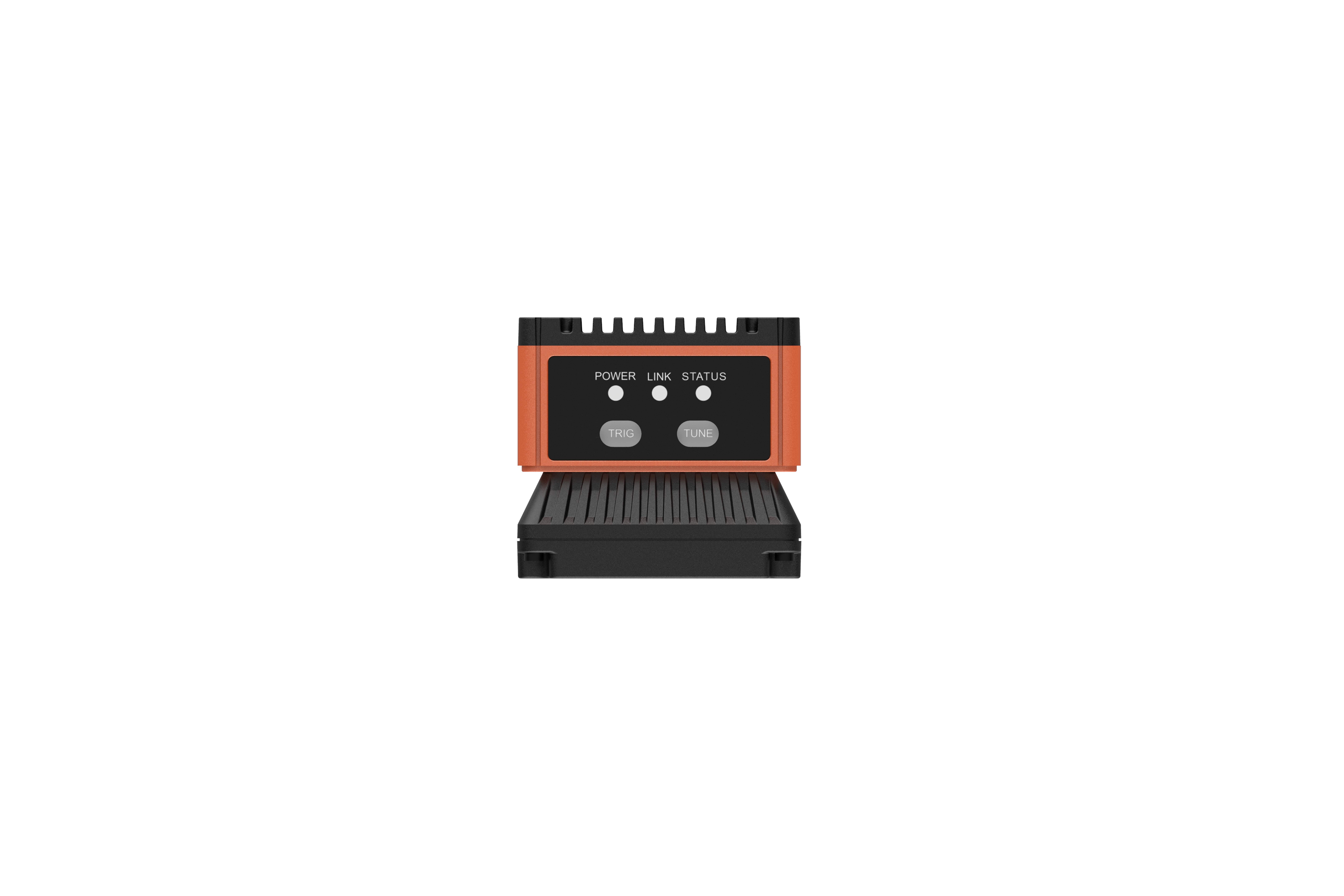

LED Indicator	Power,Ethernet,Status,Result
Power Supply	9~26VDC, 2A input, suitable for industrial environment
Power Consumption	<18 W(light included)
Product Dimensions	82mmx55mmx50.7mm (not including connector)
Net Weight	<350 g
Protection	IP65
Casing Material	Aluminum R5050MG-08M-WGG02;R5050MG-08M-RGG02;R5050MG-12M-WGG02;R5050MG-12M-RGG02;R5050MG-16M-WGG02;R5050MG-16M-RGG02;R5050MG-08M-WGG02E;R5050MG-08M-RGG02E;R5050MG-12M-WGG02E;R5050MG-12M-RGG02E;R5050MG-16M-WGG02E;R5050MG-16M-RGG02E;oy + Front cover
Operating Temperature	-20??+50?
Operating Humidity	20%?95%(no condensation)
Storage Temperature	-30??+70?

Description

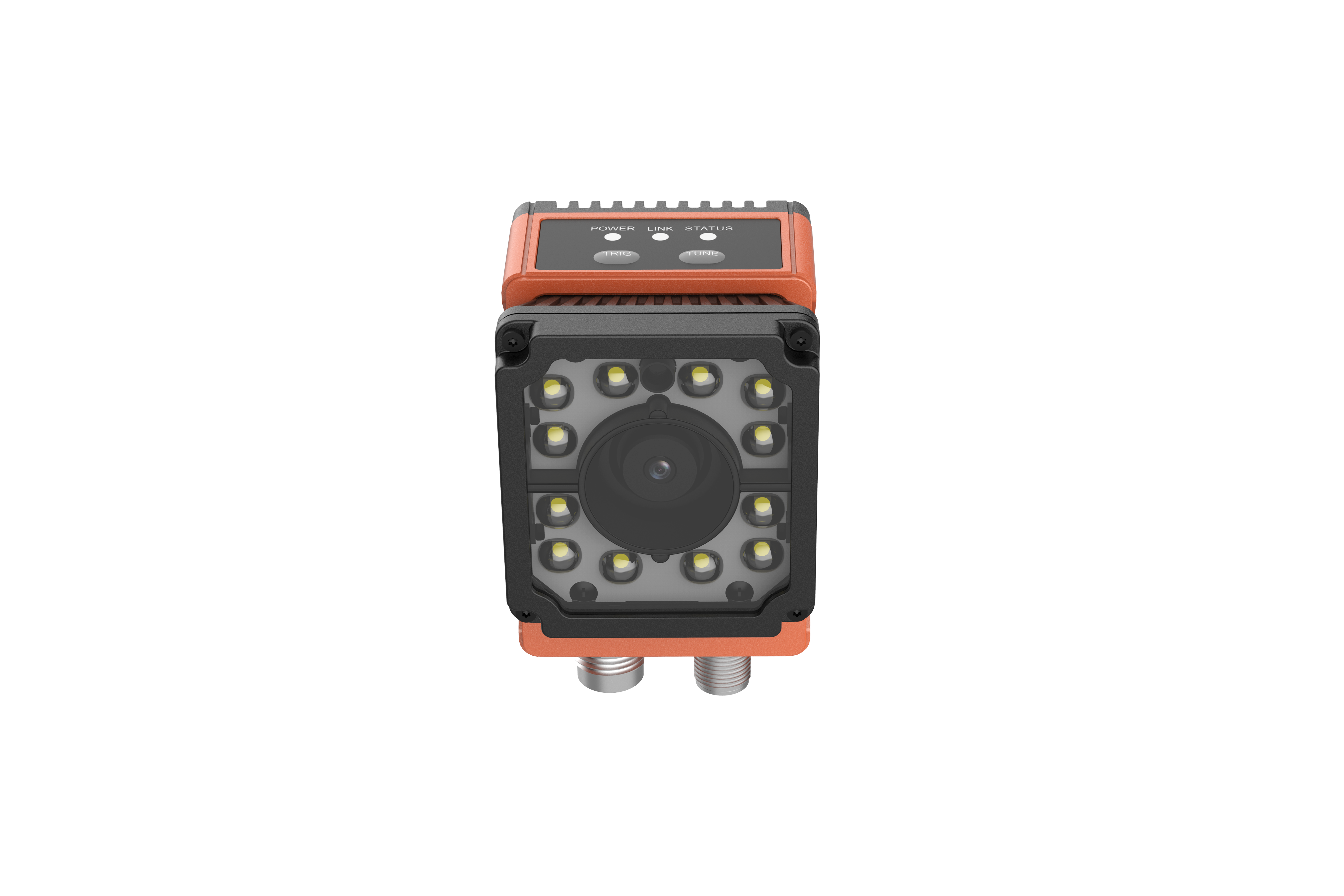

Light-integrated design makes red/white/blue illumination optional, support control separately
Support different focal lengths, electrical auto focus and one-click auto training
GigE interface, IP65 protection level
Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
Support various code formats and evaluations of code quality
Built-in deep-learning algorithms and multi-parameters polling to ensure effects of complex applications

Dimensions

Downloads

Additional information

Connector	2 Industrial connectors support GigE and GPIO
Field of view	130mm x 97 mm@WD200mm
Focus control	Auto focus
Gpio interface	RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Lens mount	M12
Power consumption	<18 W(light included)
Power supply	9~26VDC, 2A input, suitable for industrial environment
Resolution	2368 x 1792
Storage temperature	-30℃~+70℃
Trigger mode	Software trigger/External trigger/Free run modes, etc.
Working distance	80mm-1500mm
Mono-color	Mono
Max. frame rate	45 fps
Shutter mode	Global
Software	EasyID
Certifications	CE，UKCA，KC
Function
Light source type	White
Max. read speed	90 codes/s
Max. operating speed	3m/s
Min. resolution	1D code 0.04 mm/ 2D code 0.06 mm
Network port	GigE
Communication mode	RS232, Ethernet
Communication protocol	SDK，TCP Client，TCP Server，FTP，RS232，Profinet、Modbus、EtherNet/IP、MC（SLMP）、FINS/UDP、FINS/TCP
Led indicator	Power,Ethernet,Status,Result
Protection	IP65
Casing material
Operating humidity	20%~95%(no condensation)
