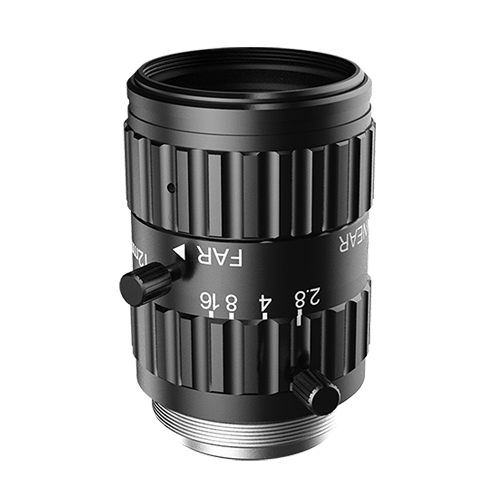

MK1228M

MK1228M

Series MK-M Series
Model MK1228M
Focal Length 12 mm
Aperture F2.8-F16
Image Sensor Size ?11.4 mm(2/3″)
Focus Range 0.1 m to infinite
Optical Distortion -0.55%
TV Distortion -0.2%
Field of View 49.2°x40.2°x30.8°(11 mmx8.5 mmx7.12 mm)
Relative Illumination 64% (F2.8); 84% (F4.0)
CRA?Chief Ray Angle) 6.14°
Spectral Range 400 nm~700 nm
Spectral Transmission T?85%
Camera Mount C-Mount
Filter Thread M25.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 39.5 mmx?30 mm
Net Weight 70 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 2/3″ camera sensors
  • 5 models, focal length covering from 12mm to 50mm
  • Ultra high resolution, 10MP resolution in full view, matching up to 1.67?m pixel size?
  • Ultra low distortion?
  • Stable sharpness quality when temperature varies from -20?~50??

Dimensions

Downloads

Additional information

Field of view

49.2°x40.2°x30.8°(11 mmx8.5 mmx7.12 mm)
Focus control

Manual
Cra (chief ray angle)

6.14°
