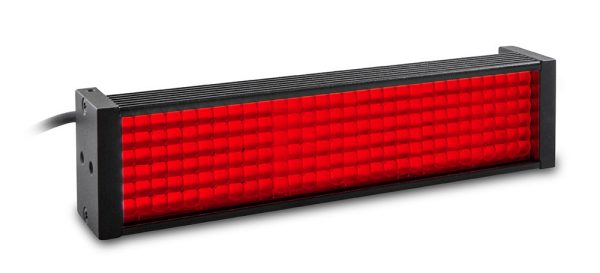

LTZPFL120-00-6-R-24V

Specification Value
Illumination area width 120 (mm)
Illumination area height 26.3 (mm)
Optimal working distance 100-150 (mm)
Number of LED rows 6
Light color, peak wavelength red, 630 nm
Illuminance 11810 (lux)
Supply voltage 24 (V)
Current 234 (mA)
Power consumption 5.7 (W)
Channels 1
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1070 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector JST SMR-03V
Cable length 500 (mm)
Length 132.0 (mm)
Width 31.5 (mm)
Height 22.0 (mm)
Mass 130 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Category: Tag: Brand:

Description

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Additional information

Cable length

500 (mm)

Operation power source

234 (mA)

Max pulse current

1070 (mA)

Light color, peak wavelength

red, 630 nm

Accessory developer

Opto

Max pulse voltage

24-48 (36 recomended) (V)

Length

132.0 (mm)

Connector

JST SMR-03V

Supply voltage

24 (V)

Height

22.0 (mm)

Width

31.5 (mm)

Operating temperature

0-45 (°C)

Color

red, 630 nm

Operating relative humidity

20-85, non condensing (%)

Mass

130 (g)

Risk group (cei 62471)

Exempt

Illumination area height

26.3 (mm)

Illuminance

11810 (lux)

Current

234 (mA)

Power consumption

5.7 (W)

Max duty cycle

10 (%)

Max pulse duration

10 (ms)

Optimal working distance

100-150 (mm)

Number of led rows

6

Channels

1

Illumination area width

120 (mm)

Lighting area (mm)

120 (mm) x 26.3 (mm)
