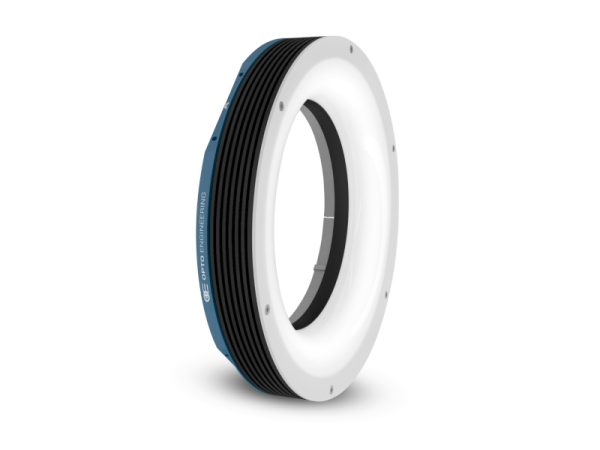

LTRNHP245R25

LTRNHP245R25

Specification Value
Illumination area outer diameter 215.0 (mm)
Illumination area inner diameter 160.0 (mm)
Emission angle 25 (deg)
Optimal working distance 20-80 (mm)
Number of LEDs 90
Light color, peak wavelength red, 625 nm
Spectral FWHM 20 (nm)
Illuminance n.a. (klux)
Diffuser yes
Supply voltage 24
Current 2710 (mA)
Power consumption 65 (W)
Max pulse current 10.0 (A)
Peak power consumption 241 (W)
Max pulse duration 1 (ms)
Max duty-cycle 2 (%)
Estimated MTBF > 20000 (hours)
Connector WEIPU SP2110/P5
Cables CBLT010 included
Outer diameter 245.0 (mm)
Inner diameter 157.0 (mm)
Height 50.0 (mm)
Mass 1600 (g)
Clamping system 8x M4 threaded holes
Operating temperature 0-40 (°C)
Storage temperature -20-+60 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. Measured at minimum working distance
  2. ± 2%.
  3. With constant driving voltage.
  4. At 25°C. At max pulse width (1 ms), max pulse frequency = 15 Hz.

Additional information

Mass

1600 (g)
Number of leds

90
Light color, peak wavelength

red, 625 nm
Accessory developer

Opto
Inner diameter

157.0 (mm)
Supply voltage

24
Height

50.0 (mm)
Operating temperature

0-40 (°C)
Storage temperature

-20-+60 (°C)
Installation

Indoor use only
Outer diameter

245.0 (mm)
Color

red, 625 nm
Operation power source

2710 (mA)
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Spectral fwhm

20 (nm)
Diffuser

yes
Connector

WEIPU SP2110/P5
Illuminance

n.a. (klux)
Current

2710 (mA)
Power consumption

65 (W)
Peak power consumption

241 (W)
Max duty cycle

2 (%)
Max pulse duration

1 (ms)
Cables

CBLT010 included
Clamping system

8x M4 threaded holes
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

215.0 (mm)
Illumination area (inner)

160.0 (mm)
Optimal working distance

20-80 (mm)
Emission angle

25 (deg)
Max pulse current

10.0 (A)
