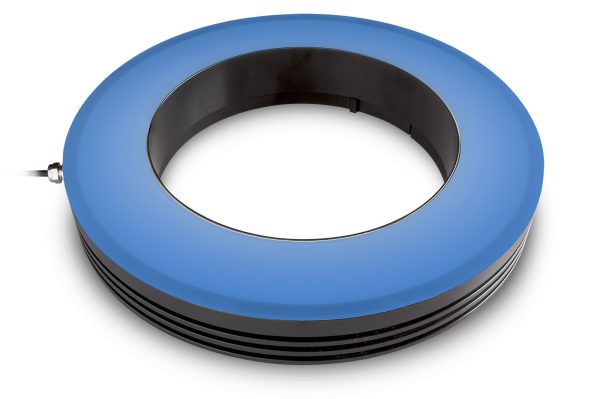

LTRN096BL

LTRN096BL

Specification Value
Illumination area outer diameter 207.0 (mm)
Illumination area inner diameter 157.0 (mm)
Emission angle 0 (deg)
Optimal working distance 350-450 (mm)
Number of LED rows 1
Light color, peak wavelength blue, 470 nm
Illuminance at minimum working distance 1420 (lux)
Illuminance at maximum working distance 978 (lux)
Supply voltage 24 (V)
Current 650 (mA)
Power consumption 15.6 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1950 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 221.0 (mm)
Inner diameter 143.0 (mm)
Height 39.6 (mm)
Mass 783 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional information

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

blue, 470 nm
Accessory developer

Opto
Lux at max wd

978 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

39.6 (mm)
Operating temperature

0-45 (°C)
Outer diameter

221.0 (mm)
Color

blue, 470 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

650 (mA)
Mass

783 (g)
Power consumption

15.6 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

207.0 (mm)
Illumination area (inner)

157.0 (mm)
Optimal working distance

350-450 (mm)
Number of led rows

1
Emission angle

0 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

143.0 (mm)
Lux at min wd

1420 (lux)
Max pulse current

1950 (mA)
Operation power source

650 (mA)
