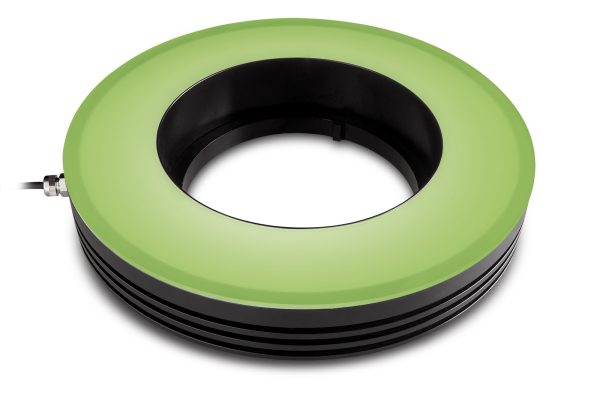

LTRN064GR

LTRN064GR

Specification Value
Illumination area outer diameter 178.0 (mm)
Illumination area inner diameter 120.0 (mm)
Emission angle 0 (deg)
Optimal working distance 280-365 (mm)
Number of LED rows 1
Light color, peak wavelength green, 525 nm
Illuminance at minimum working distance 1400 (lux)
Illuminance at maximum working distance 941 (lux)
Supply voltage 24 (V)
Current 522 (mA)
Power consumption 12.5 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1566 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 192.0 (mm)
Inner diameter 100.0 (mm)
Height 39.6 (mm)
Mass 651 (g)
Operating temperature 0-35 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional information

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

green, 525 nm
Accessory developer

Opto
Lux at max wd

941 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

39.6 (mm)
Operating temperature

0-35 (°C)
Outer diameter

192.0 (mm)
Color

green, 525 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

522 (mA)
Mass

651 (g)
Power consumption

12.5 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

178.0 (mm)
Illumination area (inner)

120.0 (mm)
Optimal working distance

280-365 (mm)
Number of led rows

1
Emission angle

0 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

100.0 (mm)
Lux at min wd

1400 (lux)
Max pulse current

1566 (mA)
Operation power source

522 (mA)
