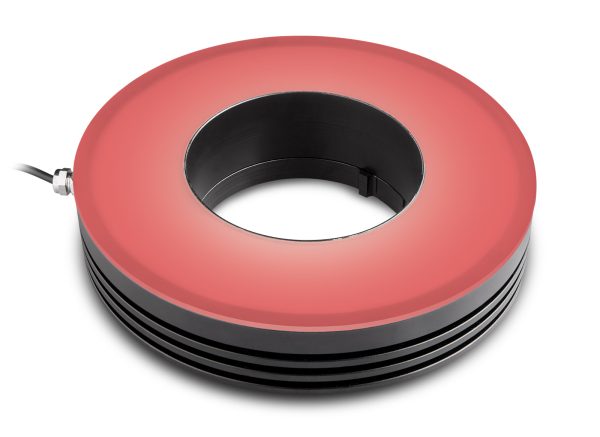

LTRN048RD

LTRN048RD

Specification Value
Illumination area outer diameter 143.0 (mm)
Illumination area inner diameter 93.0 (mm)
Emission angle 0 (deg)
Optimal working distance 160-240 (mm)
Number of LED rows 1
Light color, peak wavelength red, 630 nm
Illuminance at minimum working distance 2340 (lux)
Illuminance at maximum working distance 1320 (lux)
Supply voltage 24 (V)
Current 400 (mA)
Power consumption 9.6 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1200 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 156.6 (mm)
Inner diameter 75.0 (mm)
Height 39.6 (mm)
Mass 513 (g)
Operating temperature 0-35 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional information

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

red, 630 nm
Accessory developer

Opto
Lux at max wd

1320 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

39.6 (mm)
Operating temperature

0-35 (°C)
Outer diameter

156.6 (mm)
Color

red, 630 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

400 (mA)
Mass

513 (g)
Power consumption

9.6 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

143.0 (mm)
Illumination area (inner)

93.0 (mm)
Optimal working distance

160-240 (mm)
Number of led rows

1
Emission angle

0 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

75.0 (mm)
Lux at min wd

2340 (lux)
Max pulse current

1200 (mA)
Operation power source

400 (mA)
