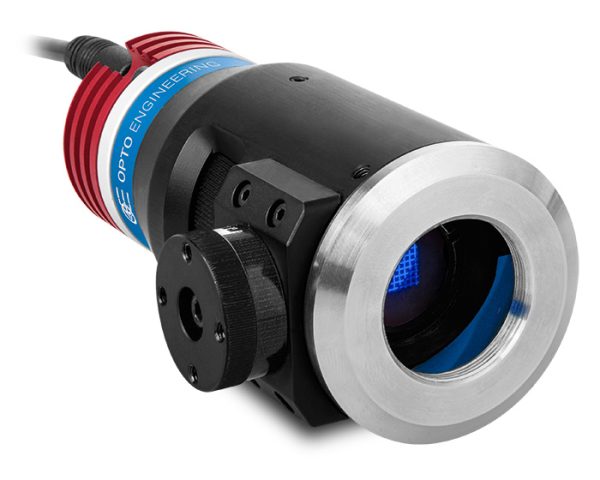

LTPRSMHP3W-B

Specification	Value
Active area	8 x 8 (mm x mm)
Max pattern tilt	45 (deg)
Light color, peak wavelength	blue, 460 nm
Spectral FWHM	25 (nm)
Illuminance	3 (klux)
Operating mode	Continuous and strobe
Supply voltage	12-24 (V)
Power consumption	4.5 (W)
LED forward voltage typical (max)	3.3 (4.0) (V)
Max LED forward current	720 (mA)
Max pulse current	2000 (mA)
Estimated MTBF	> 100000 (hours)
Connector	M8
Cables	CB244P1500 included
Mount	C
Phase adjustment	Yes
Diameter	70.0 (mm)
Length	104.1 (mm)
Mass	349 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 2

Description

With a 35 mm lens, F/N 1.4 at 100 mm working distance without projection pattern at maximum driving current. Estimated value.
To pulse LTRPSMHP3W, models built-in electronics must be bypassed in order to drive the LED directly.
Tolerance ± 10%
Max continuous LED driving current is supplied through the built-in electronics. No external controller is required.
At max forward current. Tolerance is ± 0.06V on forward voltage measurements
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
At 55 °C, 720mA.

Mount	C
Color	blue, 460 nm
Light color, peak wavelength	blue, 460 nm
Max pulse current	2000 (mA)
Accessory developer	Opto
Max pattern tilt	45 (deg)
Mass	349 (g)
Length	104.1 (mm)
Connector	M8
Supply voltage	12-24 (V)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Lens mount	C
Risk group (cei 62471)	Risk group 2
Phase adjustment	Yes
Operating relative humidity	20-85, non condensing (%)
Spectral fwhm	25 (nm)
Illuminance	3 (klux)
Power consumption	4.5 (W)
Cables	CB244P1500 included
Active area	8 x 8 (mm x mm)
Estimated mtbf	> 100000 (hours)
Led fwd volt (typ/max)	3.3 (4.0) (V)
Max led forward current	720 (mA)
Operating mode	Continuous and strobe
Diameter	70.0 (mm)
