Description
- Measured at minimum working distance
- Tolerance ± 2%
- With constant driving voltage
- Drop to 50% intensity @ 25°C

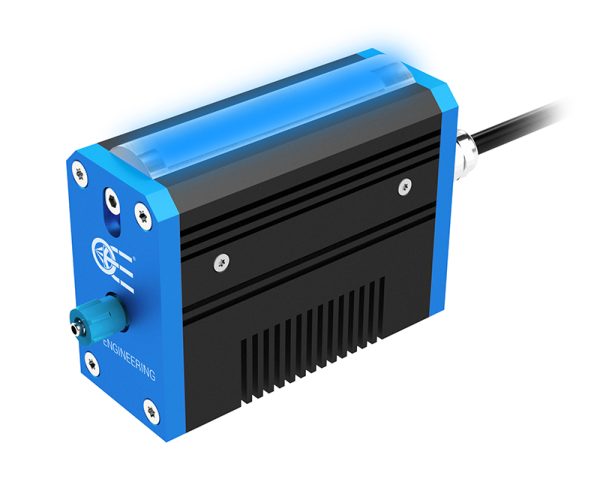

LTLNC050-B
| Specification | Value |
|---|---|
| Illumination area width | 50 (mm) |
| Illumination area height | 15 (mm) |
| Optimal working distance | 20-100 (mm) |
| Number of LEDs | 12 |
| Light color, peak wavelength | blue, 475 nm |
| Spectral FWHM | 25 (nm) |
| Illuminance | n.a. (klux) |
| Irradiance | – (W/m2) |
| Supply voltage | 24 |
| Current | 600 (mA) |
| Power consumption | 15 (W) |
| Typical pulse voltage | 41 (V) |
| Max pulse current | 2000 (mA) |
| Peak power consumption | 82 (W) |
| Max pulse duration | 100 (ms) |
| Max duty-cycle | 5 (%) |
| Estimated MTBF | > 20000 (hours) |
| Connector | M8 |
| Cables | CBLT003 included |
| Length | 80 (mm) |
| Width | 32 (mm) |
| Height | 60 (mm) |
| Mass | 300 (g) |
| Clamping system | 4x M3 threaded holes |
| Cooling method | air compressed cooling or passive |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| Risk group according to CEI EN 62471:2010 | Risk group 2 |
Additional information
| Mass | 300 (g) |
|---|---|
| Width | 32 (mm) |
| Light color, peak wavelength | blue, 475 nm |
| Max pulse current | 2000 (mA) |
| Accessory developer | Opto |
| Cooling method | air compressed cooling or passive |
| Connector | M8 |
| Height | 60 (mm) |
| Illumination area width | 50 (mm) |
| Risk group (cei 62471) | Risk group 2 |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Installation | Indoor use only |
| Color | blue, 475 nm |
| Operating relative humidity | 20-85, non condensing (%) |
| Lighting area (mm) | 50 (mm) x 15 (mm) |
| Supply voltage | 24 |
| Typical pulse voltage | 41 (V) |
| Length | 80 (mm) |
| Peak power consumption | 82 (W) |
| Optimal working distance | 20-100 (mm) |
| Estimated mtbf | > 20000 (hours) |
| Clamping system | 4x M3 threaded holes |
| Cables | CBLT003 included |
| Max pulse duration | 100 (ms) |
| Max duty cycle | 5 (%) |
| Number of leds | 12 |
| Illumination area height | 15 (mm) |
| Power consumption | 15 (W) |
| Current | 600 (mA) |
| Irradiance | |
| Illuminance | n.a. (klux) |
| Spectral fwhm | 25 (nm) |
| Operation power source | 600 (mA) |
