Description
- At pattern emitting surface.
- Continuous mode, using the integrated electronic driver.
- Strobe mode.

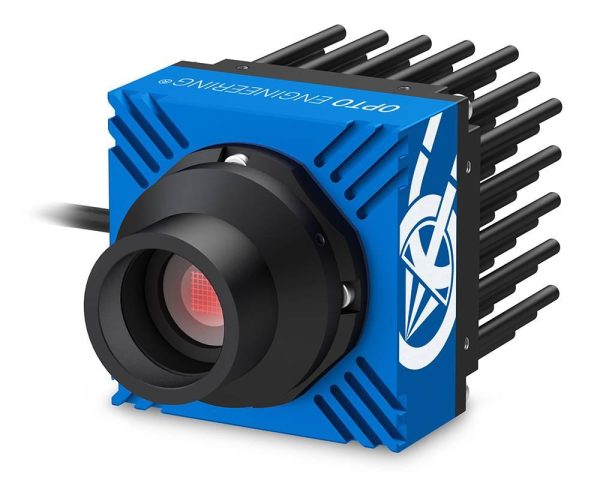

LT2PRXP-R
| Specification | Value |
|---|---|
| Active area diameter | 17.6 (mm) |
| Light color, peak wavelength | red, 625 nm |
| Spectral FWHM | 20 (nm) |
| Illuminance (continuous) | 498 (klux) |
| Irradiance (continuous) | 3100 (W/m2) |
| Illuminance (strobe) | 1300 (klux) |
| Irradiance (strobe) | 6370 (W/m2) |
| Operating mode | Continuous and strobe |
| Power supply mode | – |
| Supply voltage | 24 (V) |
| Current | 1.1 (A) |
| Power consumption | 25.2 (W) |
| Peak power consumption | 45.6 (W) |
| Max LED forward current | 3.0 (A) |
| Min pulse duration | 2 (µs) |
| Max pulse duration | 10 (ms) |
| Max duty-cycle | 10 (%) |
| Typical pulse delay | 400 (ns) |
| Typical jitter | 100 (ns) |
| I/O interface | PNP logic input, NPN logic input, analog dimming input |
| Connector | 1x M12 straight plug male connector |
| Cables | not included |
| Mount | C |
| Phase adjustment | Yes |
| Length | 100.7 (mm) |
| Width | 59.1 (mm) |
| Height | 59.1 (mm) |
| Mass | 332 (g) |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| IP rating | IP30 |
| Risk group according to CEI EN 62471:2010 | Risk group 1 |
Additional information
| Mount | C |
|---|---|
| Risk group (cei 62471) | Risk group 1 |
| Ip rating | IP30 |
| Storage temperature | 0-50 (°C) |
| Phase adjustment | Yes |
| Width | 59.1 (mm) |
| Height | 59.1 (mm) |
| Supply voltage | 24 (V) |
| Operating relative humidity | 20-85, non condensing (%) |
| Mass | 332 (g) |
| Length | 100.7 (mm) |
| Typical pulse delay | 400 (ns) |
| Accessory developer | Opto |
| Operation power source | 1.1 (A) |
| Light color, peak wavelength | red, 625 nm |
| Optmag | |
| Lens mount | C |
| Color | red, 625 nm |
| Installation | Indoor use only |
| Connector | 1x M12 straight plug male connector |
| Spectral fwhm | 20 (nm) |
| Irradiance (strobe) | 6370 (W/m2) |
| Max pulse duration | 10 (ms) |
| Cables | not included |
| I/o interface | PNP logic input, NPN logic input, analog dimming input |
| Power supply mode | – |
| Max led forward current | 3.0 (A) |
| Power consumption | 25.2 (W) |
| Illuminance (strobe) | 1300 (klux) |
| Illuminance (continuous) | 498 (klux) |
| Irradiance (continuous) | 3100 (W/m2) |
| Operating mode | Continuous and strobe |
| Min pulse duration | 2 (µs) |
| Typical jitter | 100 (ns) |
| Active area diameter | 17.6 (mm) |
| Peak power consumption | 45.6 (W) |
| Operating temperature | 0-40 (°C) |
| Current | 1.1 (A) |
| Max duty cycle | 10 (%) |
