L5082MK170E

Sensor	8 K
Image Sensor	CMOS
Shutter	Global
Resolution	8192 × 1
Line Rate	80 kHz
Bit Depth	12
Mono/Color	Mono
Pixel Size	7 μm × 7 μm
Pixel	8192 × 1
S/N Ratio	46 db
Dynamic Range	65.9 db
Image Format	Mono8/10
Binning	Support
ROI	Support
X Flip	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	2 μs~100 ms
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
FPN	Support
User Setting	Support two sets of user-defined configurations
Pixel Clock	34/51/68/85MHz

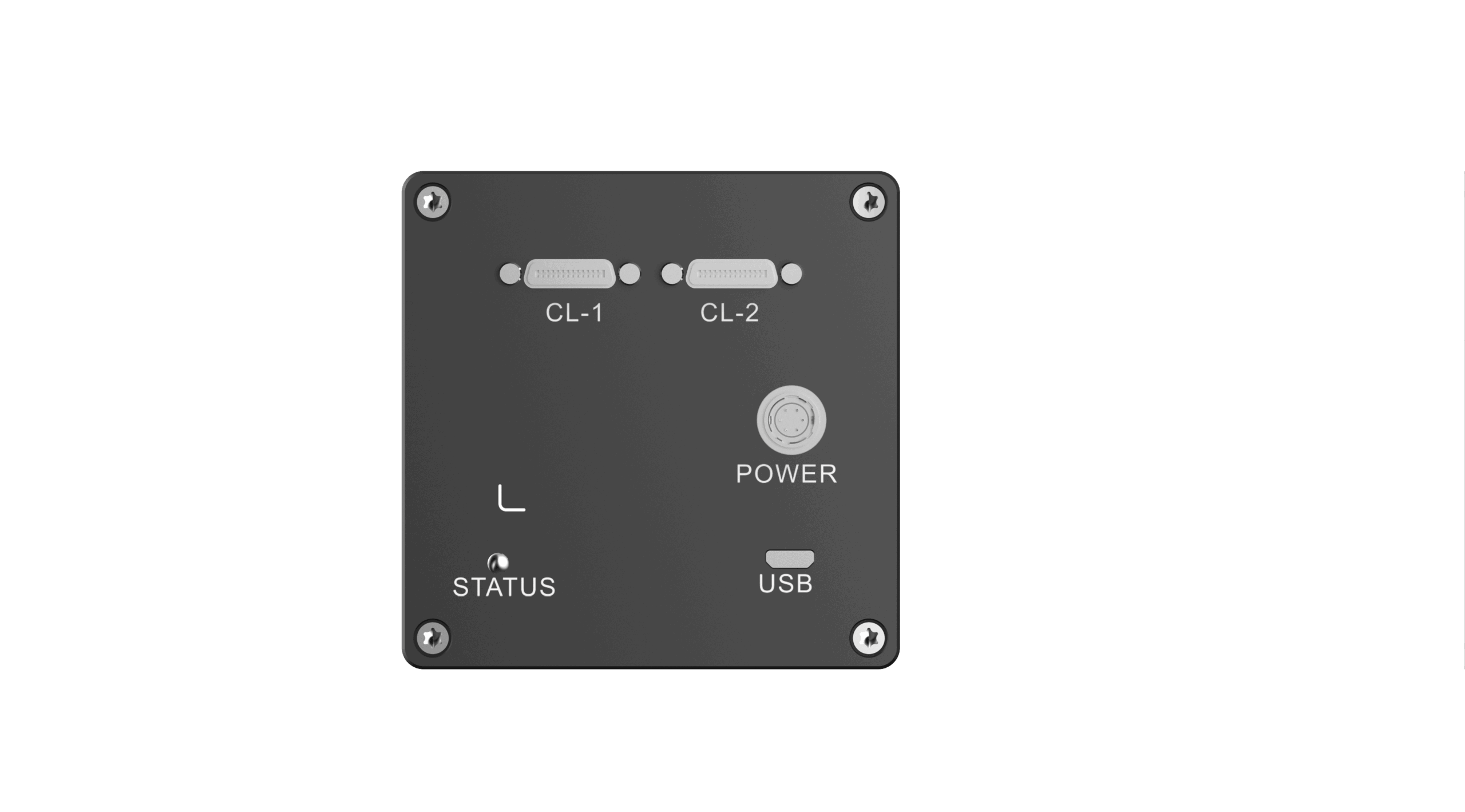

Port	CameraLink
Lens Mount	M72
Power Supply	DC12~24V power supply
Power Consumption	5 W
Product Dimensions	80 mm × 80 mm × 39.5 mm (Not including rear case connector)
Net Weight	360 g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Description

CameraLink supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth
Supports external trigger, free run mode and multiple modes
Supports Gamma correction, LUT and other ISP functions
Applies DC 24V power supply
Compatible with Cameralink protocol and GenICam standard
Comply with CE, FCC, UL, RoHS certifications.

Binning	Support
Bit depth	12
Dynamic range	65.9 dB
Exposure time	2 us~100 ms
Fpn	Support
Gain	1~32
Gamma	From 0 to 4，support LUT
Image format	Mono8/10
Image sensor	CMOS
Lens mount	M72
Line-rate	80 kHz
Pixel	8192 x 1
Pixel size	7 um x 7 um
Port	CameraLink
Power consumption	5 W
Power supply	DC12~24V power supply
Resolution	8192 x 1
Roi	Support
Sensor	8 K
Shutter	Global
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
X flip	Support
Mono-color	Mono
S/n ratio	46 db
Pixel clock	34/51/68/85MHz
