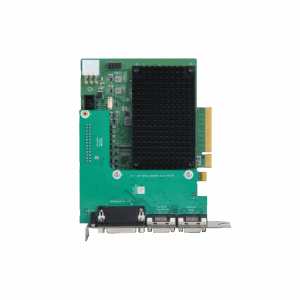

| Type | CamerLink Frame Grabber |
| Model | GCL-5B40E |
| Protocol | Camera Link 2.0 |
| Pixel Format | Mono8/10/12 BayerGR8/10/12 BayerRG8/10/12 BayerGB8/10/12 BayerBG8/10/12 RGB8 |
| Transmission Configurations | Base |
| Clock Frequency | 20MHz~85MHz |
| Taps | 1/2/3tap |
| On-board Memory | 1GB |
| Camera Compatibility | Camera Link Interface Industrial Cameras |
| Number of Cameras | 4x Base |
| Software | Mv Viewer2.4.1 |
| Operating System | Windows 7/8/10 64 bit |
| Power Supply | PCIe/ATX 6-pin Connector |
| Power Consumption | 9.2W (without PoCL) |
| Product Dimensions | 151.1mmx126.3mmx41.9mm |
| Net Weight | 0.24kg |
| Host Bus Standard | PCIe 2.0 x8 (occupies 2 PCIe slot locations) |
| Host Bus Link speed | 5GT/s?PCIe 2.0? |
| Delivery bandwidth | 1780MB/s(Peak delivery bandwidth), 1650 MB/s (Sustained delivery bandwidth) |
| Interface | SDRx4 |
| I/O Lines | 10 IOs up and down? • 2x differential input(Single-end Supported) • 4x Opto-isolated Input (DIN) • 4x Opto-isolated Output (DOUT) |
| Connector | 26-pin pole top and bottom 3-row high-density female sub-D connector |
| Transfer Rate | 6.8 Gbps(850 MB/s) |
| Operating Temperature | 0~50? |
| Storage Temperature | -20~70? |
| Operating Humidity | 10% ~ 90%RH, non-condensing |
| Storage Humidity | 10% ~ 90%RH, non-condensing |
| Connector | 26-pin pole top and bottom 3-row high-density female sub-D connector |
|---|---|
| Interface | SDRx4 |
| Operating humidity | 10% ~ 90%RH, non-condensing |
| Power consumption | 9.2W (without PoCL) |
| Power supply | PCIe/ATX 6-pin Connector |
| Product type | CamerLink Frame Grabber |
| Software | Mv Viewer2.4.1 |
| Storage temperature | -20~70℃ |
| Protocol | Camera Link 2.0 |
| Camera compatibility | Camera Link Interface Industrial Cameras |
| Number of cameras | 4x Base |
| Operating system | Windows 7/8/10 64 bit |
| Host bus standard | PCIe 2.0 x8 (occupies 2 PCIe slot locations) |
| Host bus link speed | 5GT/s（PCIe 2.0） |
| Delivery bandwidth | 1780MB/s(Peak delivery bandwidth), 1650 MB/s (Sustained delivery bandwidth) |
| Transfer rate | 6.8 Gbps(850 MB/s) |
| Storage humidity | 10% ~ 90%RH, non-condensing |
| I/o lines | 10 IOs up and down： • 2x differential input(Single-end Supported) • 4x Opto-isolated Input (DIN) • 4x Opto-isolated Output (DOUT) |
| Pixel format | Mono8/10/12 BayerGR8/10/12 BayerRG8/10/12 BayerGB8/10/12 BayerBG8/10/12 RGB8 |
| Transmission configurations | Base |
| Clock frequency | 20MHz~85MHz |
| Taps | 1/2/3tap |
| On board memory | 1GB |
