AX5A22CX060E

Port	CXP-6
Sensor	CMV12000
Image Sensor	22.5 mm x 16.9 mm CMOS
Shutter	Global
Resolution	4096 x 3072
Frame Rate	188 fps
Bit Depth	10 bit
Mono/Color	Color
Pixel Size	5.5 ?m x 5.5 ?m
Pixel	12MP
S/N Ratio	41.3dB
Dynamic Range	60dB
Image Format	BayerGR8 /BayerGR10 /BayerGR12 /BayerRG8 /BayerRG10 /BayerRG12/BayerGB8/BayerGB10/BayerGB12/BayerBG8/BayerBG10/BayerBG12
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~100
White Balance	Support
Exposure Time	50?S~5S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
user Setting	Support two sets of user-defined configurations
Image Buffer	2GB data cache
GPIO Interface	3x configurable input and output
Lens Mount	F-Mount
Power Supply	DC24V power supply via 6-pin Hirose interface
Power Consumption	24V?15W

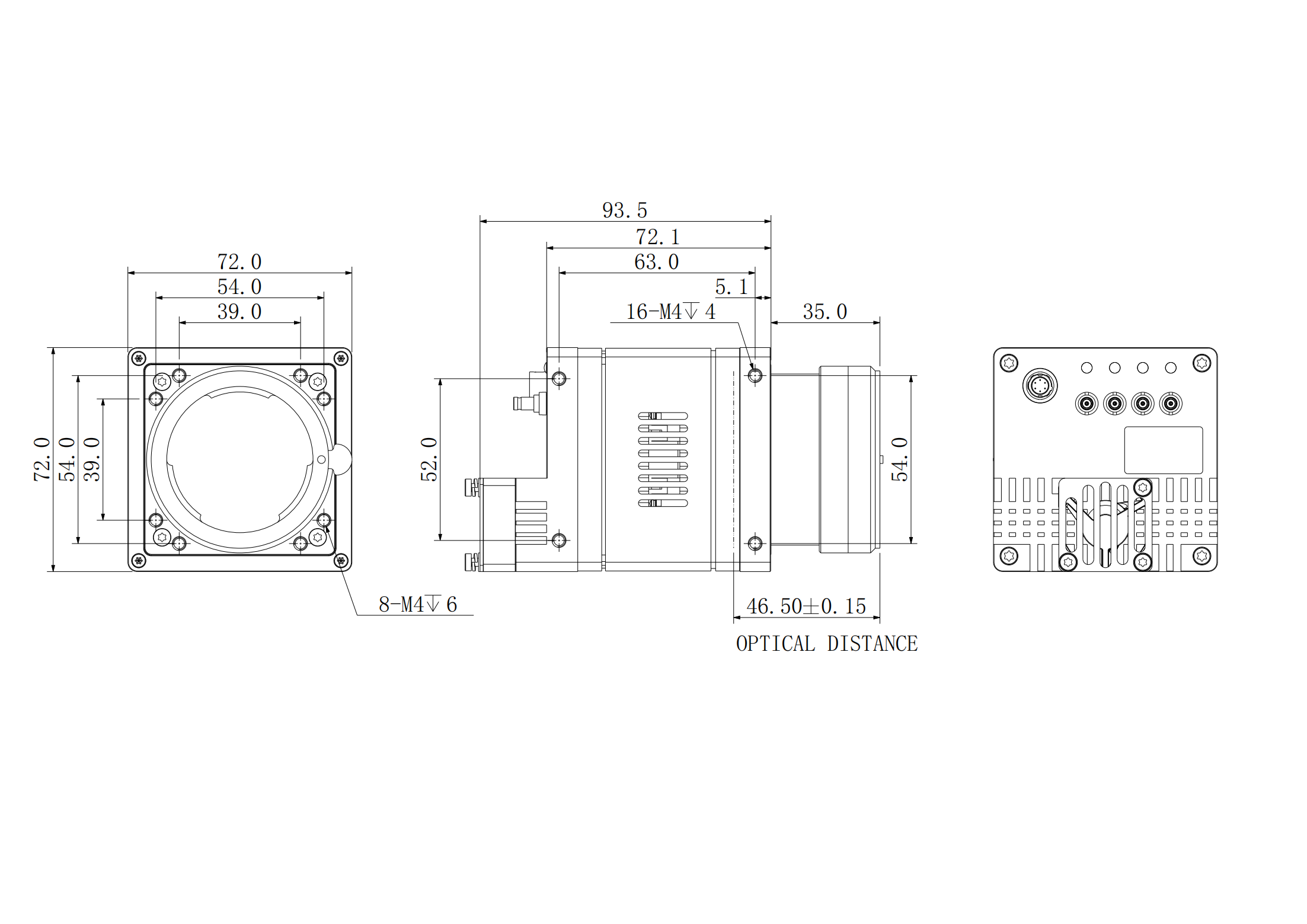

Product Dimensions	72mmx72mmx72mm(not including rear case connector)
Net Weight	720 g
Storage Temperature	– 30?~+80?
Operating Temperature	– 30?~+50?

Description

Bit depth	10 bit
Dynamic range	60dB
Exposure time	50us~5S
Frame rate	188 fps
Gain	1~100
Gpio interface	3x configurable input and output
Image buffer	2GB data cache
Image format	BayerGR8 /BayerGR10 /BayerGR12 /BayerRG8 /BayerRG10 /BayerRG12/BayerGB8/BayerGB10/BayerGB12/BayerBG8/BayerBG10/BayerBG12
Image sensor	22.5 mm x 16.9 mm CMOS
Lens mount	F-mount
Pixel	12MP
Pixel size	5.5 um x 5.5 um
Port	CXP-6
Power consumption	24V≈15W
Power supply	DC24V power supply via 6-pin Hirose interface
Resolution	4096 x 3072
Roi	Support
Sensor	CMV12000
Shutter	Global
Spc	Support
Storage temperature	– 30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
White balance	Support
X flip	Support
Y flip	Support
Mono-color	Color
S/n ratio	41.3dB
