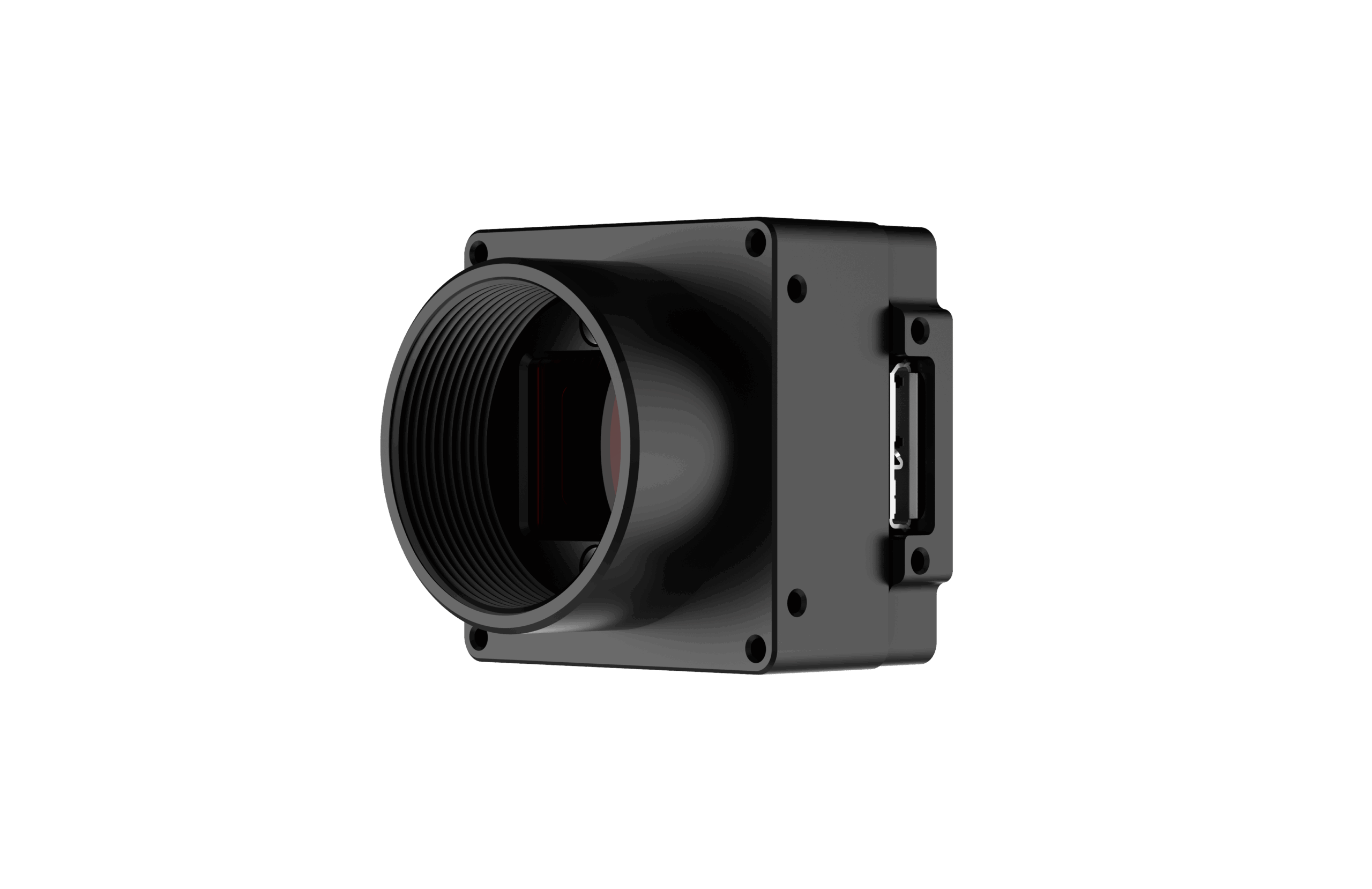

AB3138MU000E

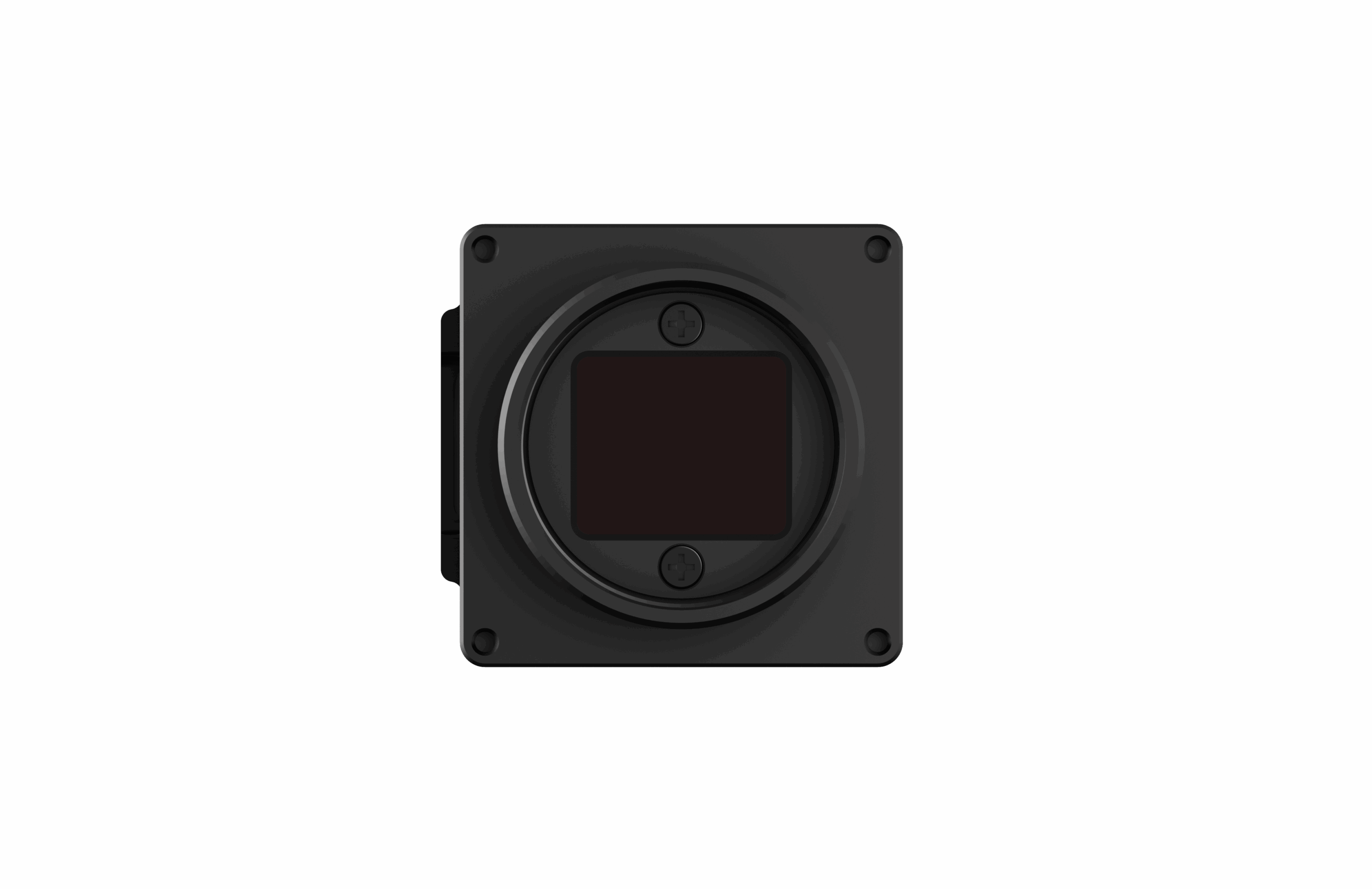

AB3138MU000E - Image 2
AB3138MU000E - Image 3

AB3138MU000E

Sensor SS
Image Sensor 1/2.7″CMOS
Shutter Global
Resolution 1280 x 1024
Frame Rate 201 fps
Bit Depth 10
Mono/Color Mono
Pixel Size 4.0 ?m x 4.0 ?m
Pixel 1.3MP
S/N Ratio 40dB
Dynamic Range 60dB
Image Format Mono8/10/10Packed
Binning Support
ROI Support
Gain 1~32
Gamma from 0 to 4, support LUT
Exposure Time 10?S~1S
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
user Setting Support two sets of user-defined configurations
Image Buffer 64MB image cache
Port usB3.0
GPIO Interface Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount C-mount
Power Supply power supply via usB interface?conform to usB3.0 interface specification?
Power Consumption ?2.8W
Product Dimensions 35mmx35mmx19mm
Net Weight 46 g
Storage Temperature -30?~+80?
Operating Temperature -30?~+50?
Add to Quote
Category: Tag: Brand:

Description

  • usB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via usB interface
  • Compact design of 35mm*35mm*19mm
  • 128MB on-board cache for data transmission or image resend
  • Support Software Trigger/Hardware Trigger/Free Run Mode
  • Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
  • Support multiple image data formats output/ ROI/Binning/Mirror, etc.
  • Conform to usB3.0 Vision protocol and GenICam standard
  • Conform to CE, FCC, RoHS

Dimensions

Downloads

usB_3.0_Area_Scan_Camera_user_s_Manual_V1.0.0.pdf

Additional information

Binning

Support
Bit depth

10
Dynamic range

60dB
Exposure time

10us~1S
Frame rate

201 fps
Gain

1~32
Gamma

From 0 to 4, support LUT
Gpio interface

Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer

64MB image cache
Image format

Mono8/10/10Packed
Image sensor

1/2.7"CMOS
Lens mount

C-mount
Pixel

1.3MP
Pixel size

4.0 um x 4.0 um
Port

usB3.0
Power consumption

≈2.8W
Power supply

power supply via usB interface（conform to usB3.0 interface specification）
Resolution

1280 x 1024
Roi

Support
Sensor

SS
Shutter

Global
Spc

Support
Storage temperature

-30℃~+80℃
Trigger mode

Software Trigger/Hardware Trigger/Free Run Mode
User setting

Support two sets of user-defined configurations
Mono-color

Mono
S/n ratio

40dB
